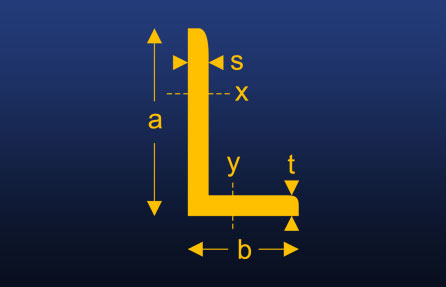

Ανισοσκελής γωνία (DIN 1029 ST 37, ST 37-2).
|
διαστάσεις (mm) |
διατομή F |
Βάρος
G kg/m |
Ροπή αντίστασης |
διαστάσεις (mm) |
διατομή F |
βάρος
G kg/m |
ροπή αντίστασης |
|
a |
b |
s |
(cm2) |
kg/m |
Wx (cm3) |
Wy (cm3) |
a |
b |
s |
(cm2) |
kg/m |
Wx (cm3) |
Wy (cm3) |
|
40 |
20 |
3 |
1.72 |
1.35 |
1.08 |
0.30 |
125 |
75 |
8 |
15.40 |
12.20 |
30.10 |
12.00 |
|
40 |
20 |
4 |
2.25 |
1.77 |
1.42 |
0.39 |
125 |
75 |
10 |
19.00 |
15.00 |
37.00 |
14.70 |
|
60 |
40 |
5 |
4.79 |
3.76 |
4.25 |
2.02 |
130 |
65 |
8 |
15.10 |
11.90 |
31.10 |
8.72 |
|
65 |
50 |
7 |
7.60 |
5.97 |
6.99 |
4.31 |
130 |
65 |
10 |
18.60 |
14.60 |
38.40 |
10.70 |
|
75 |
55 |
5 |
8.30 |
4.95 |
6.84 |
3.89 |
130 |
65 |
12 |
22.10 |
17.30 |
45.50 |
12.70 |
|
75 |
55 |
7 |
8.66 |
6.80 |
9.39 |
5.32 |
130 |
90 |
10 |
21.20 |
16.60 |
40.50 |
20.60 |
|
80 |
65 |
8 |
11.00 |
8.66 |
12.30 |
8.41 |
130 |
90 |
12 |
25.10 |
19.70 |
48.00 |
24.40 |
|
90 |
60 |
6 |
8.69 |
6.82 |
11.70 |
5.61 |
150 |
75 |
10 |
21.55 |
16.95 |
51.70 |
14.55 |
|
90 |
60 |
8 |
11.40 |
8.96 |
15.40 |
7.31 |
150 |
75 |
12 |
25.70 |
20.30 |
61.80 |
17.40 |
|
100 |
50 |
8 |
11.50 |
8.99 |
18.00 |
5.04 |
150 |
90 |
10 |
23.20 |
18.60 |
53.10 |
20.90 |
|
100 |
50 |
10 |
14.10 |
11.10 |
22.20 |
6.17 |
150 |
90 |
12 |
27.50 |
21.60 |
63.10 |
24.70 |
|
100 |
65 |
7 |
11.20 |
8.77 |
16.60 |
7.54 |
150 |
100 |
10 |
24.20 |
19.00 |
54.10 |
25.80 |
|
100 |
65 |
9 |
14.20 |
11.10 |
21.00 |
9.52 |
150 |
100 |
12 |
28.70 |
22.60 |
64.20 |
30.60 |
|
100 |
75 |
8 |
13.50 |
10.50 |
19.25 |
11.35 |
200 |
100 |
10 |
29.20 |
23.00 |
93.20 |
26.30 |
|
100 |
75 |
10 |
16.60 |
13.05 |
23.70 |
14.10 |
200 |
100 |
12 |
34.80 |
27.30 |
111.00 |
31.30 |
|
120 |
80 |
8 |
15.50 |
12.20 |
27.60 |
13.20 |
250 |
90 |
10 |
33.20 |
26.10 |
140.00 |
21.70 |
|
120 |
80 |
10 |
19.10 |
15.00 |
34.10 |
16.20 |
250 |
80 |
12 |
36.60 |
31.10 |
166.00 |
25.80 |
|
120 |
80 |
12 |
22.70 |
17.80 |
40.40 |
19.10 |
250 |
90 |
14 |
45.90 |
36.00 |
192.00 |
29.70 |
Επιτρεπόμενη φόρτιση kg/m / άνοιγμα στήριξης m
|
διαστάσεις |
1.0 |
1.25 |
1.5 |
1.75 |
2.0 |
2.5 |
3.0 |
4.0 |
|
40 x 20 x 3 |
138 |
89 |
61 |
45 |
35 |
|
|
|
|
60 x 40 x 6 |
644 |
412 |
286 |
210 |
161 |
|
|
|
|
80 x 65 x 8 |
1574 |
1008 |
700 |
514 |
394 |
252 |
175 |
98 |
|
90 x 60 x 6 |
1498 |
958 |
665 |
489 |
374 |
240 |
166 |
94 |
|
100 x 50 x 8 |
2304 |
1475 |
1024 |
752 |
576 |
369 |
258 |
144 |
|
100 x 65 x 7 |
2125 |
1360 |
944 |
694 |
531 |
340 |
236 |
133 |
|
120 x 80 x 10 |
4365 |
2793 |
1940 |
1425 |
1091 |
698 |
485 |
273 |
|
130 x 65 x 10 |
4915 |
3146 |
2185 |
1605 |
1229 |
786 |
546 |
307 |
